tsp diamond inserts - TSP

Quick Brief

Model Number: TSPOrigin: ChinaBrand: KOSUPERHARD
Certifications: Price Terms: FOBPayment Terms: T/T, Western Union, MoneyGram, PayPal,
Minimum Order: 10pieces
tsp diamond inserts

Business Term

Delivery Time: 5~10 days

Price Term: FOB

Payment Term: T/T, Western Union, MoneyGram, PayPal,


Contact Supplier

Supplier Information

Product Category: Drill Bit

Supplier: Henan Shengchuang Super Hard Products Co., Ltd

Post Date: 2013-06-26 59:10:17



Packaging Information

plastic box

Product Details and Specifications:

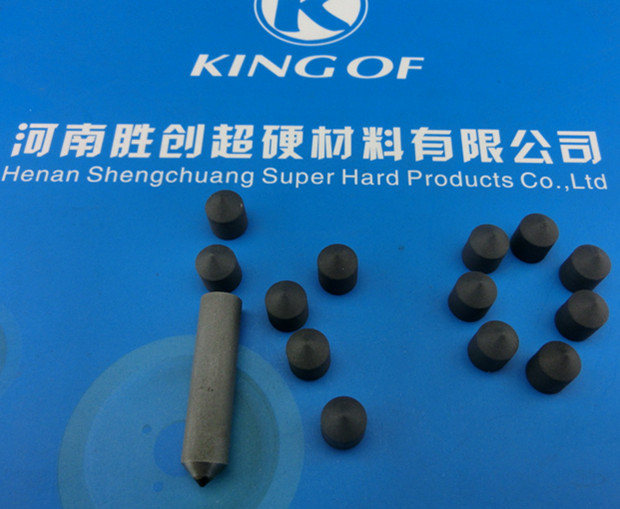

tsp diamond inserts

TSP - Thermally Stable Polycrystalline Diamond

Thermally Stable Polycrystalline (TSP) diamond can be manufactured into a variety of sizes and shapes (Cubes, Cylinders, Discs, Rectangles, Triangles, Spheres etc.) that can be inserted into cutting tools, drilling bits, reamers, wire drawing dies, and other wear-resistant components.

Polycrystalline Diamond TSP Series

Type: D * H *α (mm)

Φ 1 *1.2* 120

Φ 1.2 * 3.5 * 120

Φ 1.5 *3.5* 180

Φ 1.5 * 4 *180

Φ 1.8 * 4*180

Φ 2 *4 *120

Φ 2 * 4 * 180

Φ 2.7 * 4 * 120

Φ 3 * 3 * 180

Φ 3 *5 * 120

Φ 3 * 5 *180

Φ 3 * 6 * 120

Φ 4 * 4 *180

Φ 4 * 5 * 90

Φ 4* 5 *180

Φ 4 *6 *120

Φ 5 * 4 *180

Φ 5 * 5 * 120

Φ 5 * 5 * 180

Φ 5.3 * 2.1 * 180

Φ 6 * 3 *180

Φ 6 * 4 *180

Φ 6 * 6 *120

Φ 6 * 6 * 180

Φ 6 * 8 * 120

Φ 6 * 8 *180

Φ 6 * 12 *120

Φ 6 *12 *180

Φ 6.3 * 3.3 * 180

Φ 8 * 2.6 * 180































Polycrystalline Diamond Square and triangular

Type: D* H *T (mm)

â–¡ 1.5 * 1.5 *1.5

â–¡ 1.5 * 1.5 * 3

â–¡ 1.5 *1.5 * 5

â–¡ 2 * 2 * 2

â–¡ 2.5 *2.5 *2.5

â–¡ 2.5* 2.5 * 5

â–¡ 3 * 3 *3

â–¡ 3 * 3 * 4

â–¡ 3 * 3*6

â–¡ 3 *3 * 5

â–¡ 4 * 4 *2.5

â–¡ 4 * 4 *4

â–¡ 4 * 4 * 6

â–¡ 4 * 4 * 8

â–¡ 5 * 5 * 5

â–¡ 5 * 5* 8

â–³ 4 *4 * 4*2.6

â–³ 5 * 5 * 5 *3

â–³ 6 * 6 * 6 * 3.5

â–³ 6 * 6 * 6 * 4

â–³ 6 * 6 * 6*4.5

â–³ 6 *6 *6 *5

â–³ 7 * 7 *7*2

â–³ 3 * 3 * 10
